Ship's armature/valves Bronze CC491K; DIN RG5 / forged

GLOBE VALVE STRAIGHT BRONZE WITH WELDING RINGS AS-RG-N; S DIN86511 PN 40

GLOBE VALVE STRAIGHT BRONZE WITH WELDING RINGS AS-RG-N; S DIN86511 PN 40

Material:

bronze CC491K; DIN RG5 / forged

Dimensions:

DN 6 - 32

APPLICATIONS
"Applications includes usage in Steam, Oil, Neutral gases, Sea water, Cold and Hot water systems"

VARIANTS AND ADVANTAGES
Acc. to DIN 86511-AS-RG-S
seawater resistant bonnet without brass inner parts
Other body materials on request

Request Dowload PDF

Materials

No. Parts Material
1 Body Gunmetal RG5
2 Inner parts Brass Ms58
3 Seat sealing Metallic

Characteristics

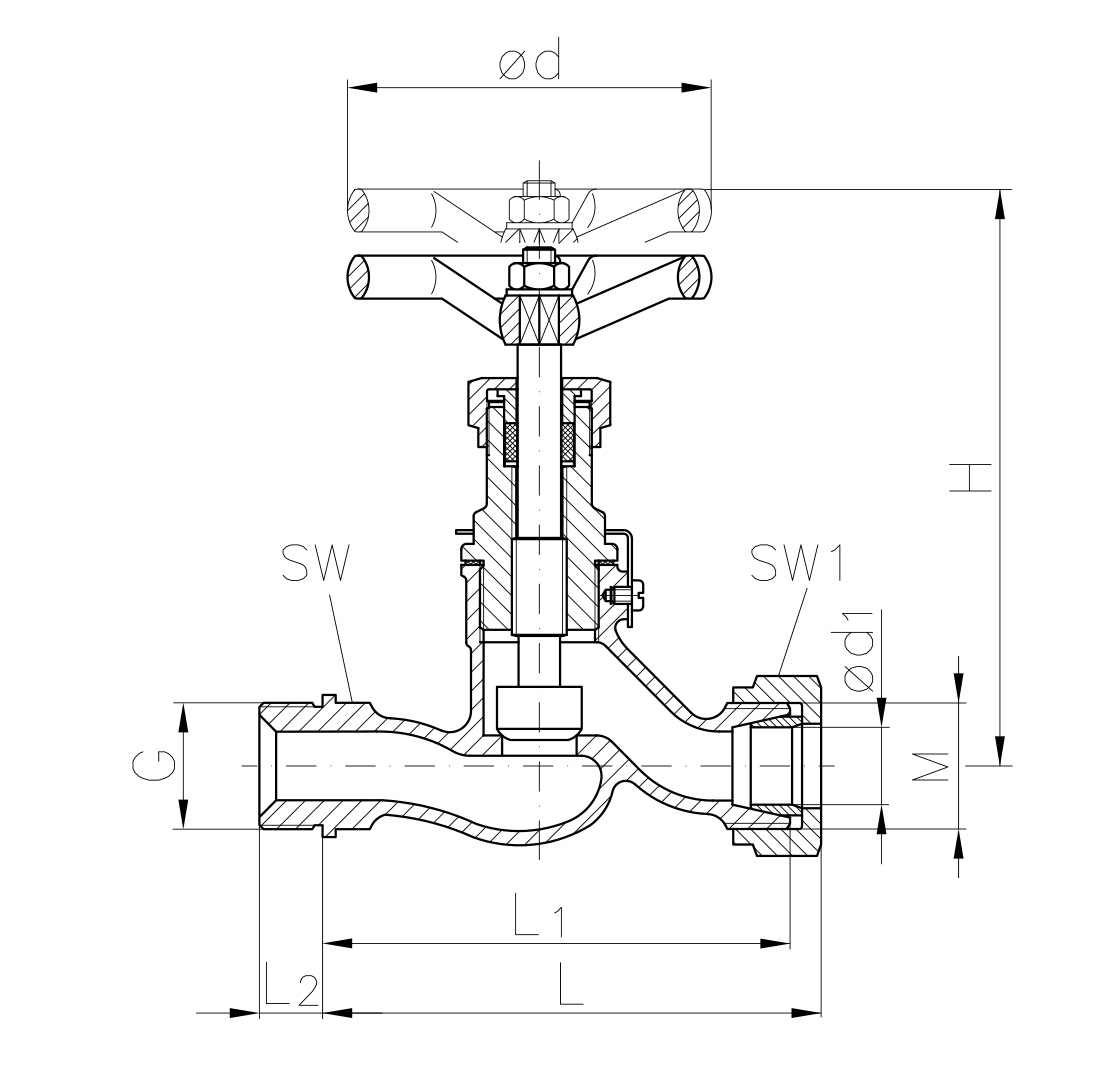

Dimensions

DN Ød1 R R1 L L1 L2 H Ød SW SW1 kg
6 10 3/8 1/2 67 60 12 110 60 17 27 0,5
8 12 1/2 5/8 71 64 14 110 60 19 27 0,5
10 14 1/2 3/4 78 70 14 110 60 24 36 0,5
12 16 3/4 7/8 93 84 16 130 80 24 36 1,0
16 20 3/4 1 100 90 16 130 80 24 41 1,1
20 25 1 11/8 121 110 18 150 100 30 46 1,7
25 30 11/4 13/8 132 120 20 150 100 41 50 1,9
32 38 11/2 13/4 154 140 22 180 120 - - 3,0
