Ship's armature/valves Bronze CC491K; DIN RG5 / forged

GLOBE VALVE STRAIGHT BRONZE WITH WELDING RINGS CS-RG-N; S DIN86511 PN 40

GLOBE VALVE STRAIGHT BRONZE WITH WELDING RINGS CS-RG-N; S DIN86511 PN 40

Material:

bronze CC491K; DIN RG5 / forged

Dimensions:

DN 6 - 32

APPLICATIONS
"Applications includes usage in Steam, Oil, Neutral gases, Sea water, Cold and Hot water systems"

VARIANTS AND ADVANTAGES
Acc. to DIN 86511-CS-RG-S
seawater resistant bonnet without brass inner parts
Other body materials on request

Request Dowload PDF

Materials

No. Parts Material
1 Body Gunmetal RG5
2 Inner parts Brass Ms58
3 Seat sealing Metallic

Characteristics

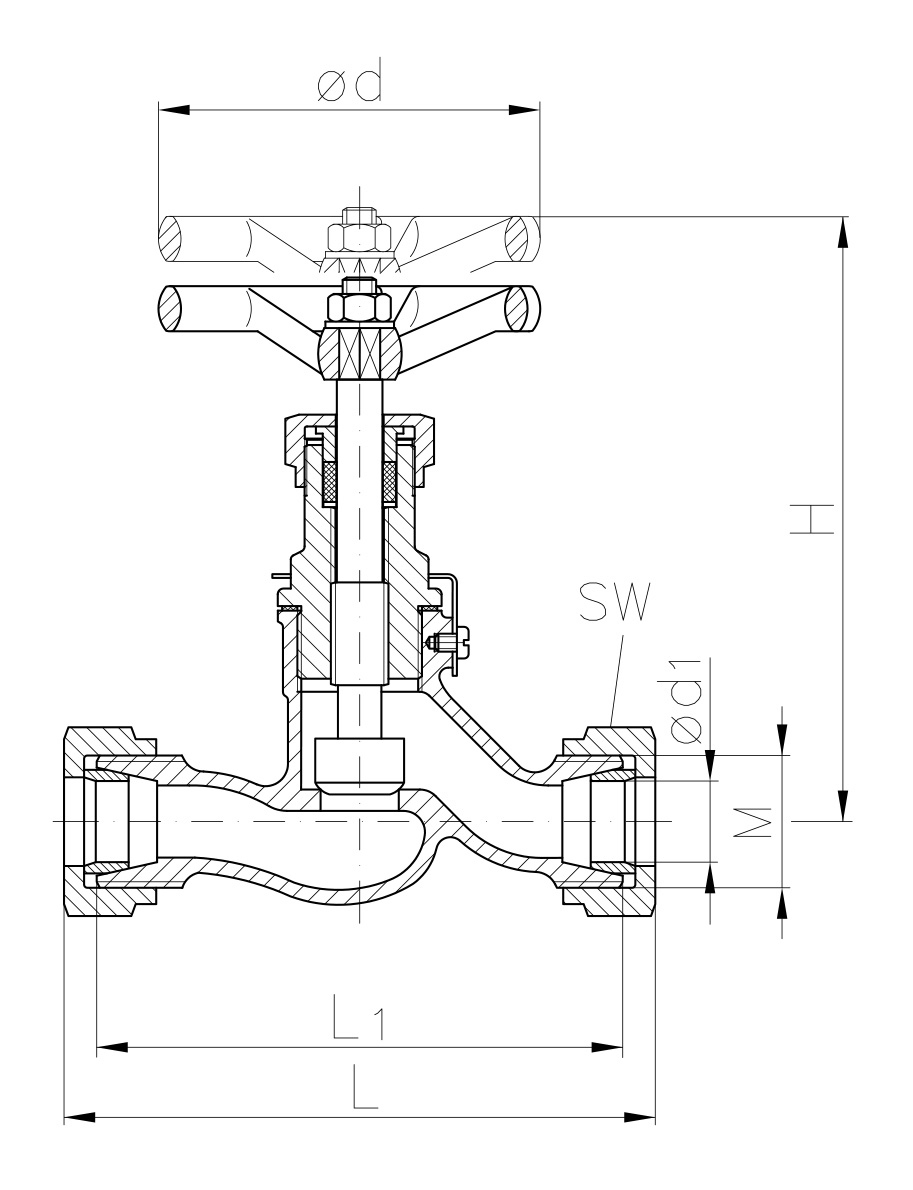

Dimensions

DN Ød1 R L L1 H Ød SW kg
6 10 1/2 74 60 110 60 22 0,5
8 12 5/8 78 64 110 60 24 0,5
10 14 3/4 88 70 110 60 30 0,5
12 16 7/8 102 87 130 80 30 1,0
16 20 1 110 90 130 80 36 1,1
20 25 11/8 132 110 150 100 46 1,7
25 30 13/8 144 120 150 100 50 1,9
32 38 13/4 164 140 180 120 - 3,0
